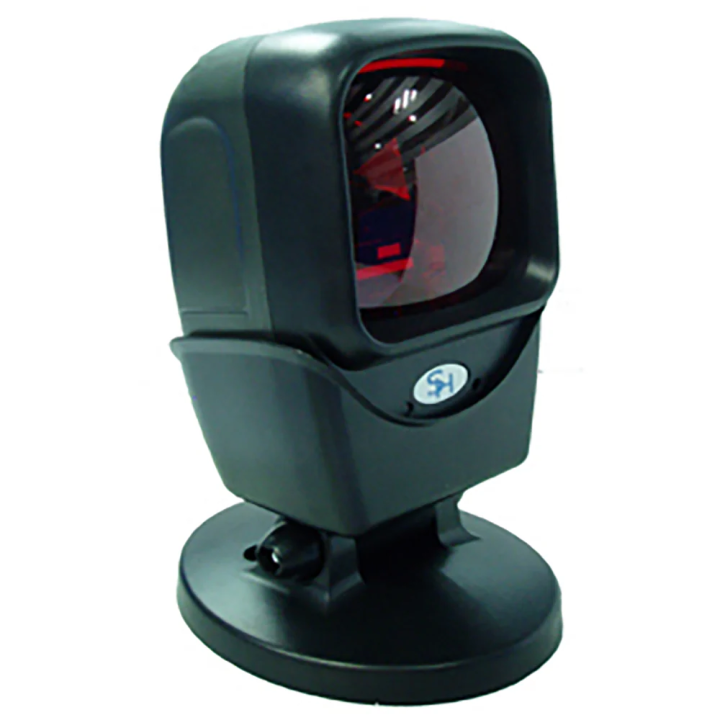

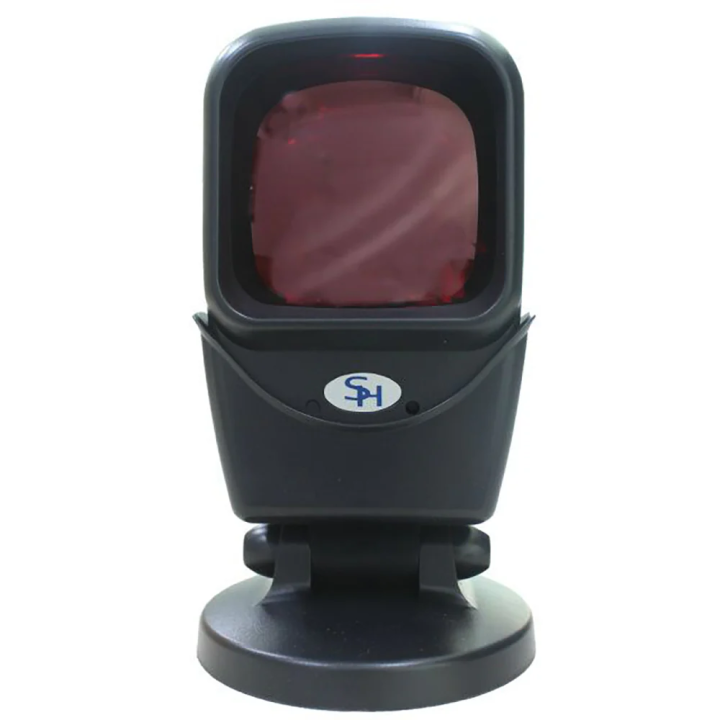

SCAN HERO SL-9180

Operational

Light source

650 nm visible laser diode (VLD)

Depth of field

0 - 200 mm for 0.33mm UPC/EAN 100%

Scan pattern

5 directions of scan field

Scan speed

Multi-line 1,500lines/secondsingle-line 75lines/second

Number of Scan lines

20lines

Minimum Bar Width

5mil@ Print contrast 90%/Code39 code

Print contrast

30% @ UPC/EAN 100%

Indicator (LED)

Two-color LED (blue & red)

Beep operation

Programmable tone & beep time

System interface

KeyboardRS232CUSB

Physical

Height

176mm

Thickness

78/115 mm

Width

92/99 mm

Weight

Cable

2mstraight

Power

Input voltage

5 VDC±10%

Power

1.0 watts

Operating current

200 mA

Regulator

Laser class

CDRH class II; IEC 60825-1 class 1

EMC

CE & FCC DOC compliance

Environmental

Operating temperature

0°C 40°C (32°F - 104°F)

Storage temperature

-20°C 60°C (-4°F - 140°F)

Humidity

5% 95% RH (non-condensing)

Light level

Max. 4,500 LUX

Drop durability

1.0m drop onto concrete

Decode capability

one-dimension barcode

UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8& JAN 13, ISBN/ISSN, EAN,Code 39, Code 39 with full ASCII, Code 93, Code 128,Codabar (NM7), Code 128 with full ASCII,trioptic Code 39, MSI/Plessy, Interleaved 2 of 5 (ITF), Addendum 2 of 5,IATA Code,China Postal Code, Code 32

Code type selection

Industrial 2 of 5, Standard 2 of 5, Discrete 2 of 5,Matrix 2 of 5, Code 11, UPC/EAN RSS, RSS ariants
